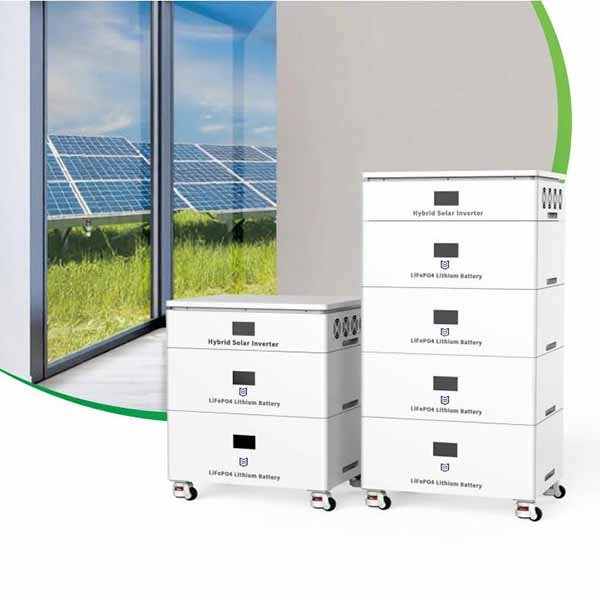

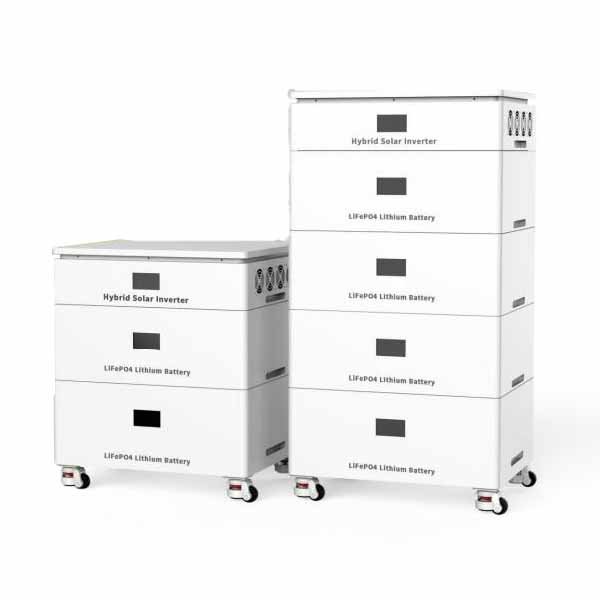

moPower 10kW/30kWh & 12kW/60kWh Stackable All-in-One Solar Energy Storage System | Hybrid Inverter & LiFePO4 Battery ESS
moPower 10kW/30kWh & 12kW/60kWh Stackable All-in-One Solar Energy Storage System | Hybrid Inverter & LiFePO4 Battery ESS - Image 2

moPower 10kW/30kWh & 12kW/60kWh Stackable All-in-One Solar Energy Storage System | Hybrid Inverter & LiFePO4 Battery ESS

  • All-in-One Integrated Design
    Hybrid inverter and LiFePO4 battery integrated into one compact stackable system for easier installation and maintenance.
  • Flexible Stackable Energy Expansion
    Available in 30kWh and 60kWh battery capacities to meet different residential and commercial energy demands.
  • High-Efficiency Solar Charging
    Dual MPPT design with up to 15kW PV input and wide 60V–450V MPPT voltage range for maximum solar utilization.
  • Reliable Backup Power & UPS Function
    Fast switching time with pure sine wave output ensures stable power supply during grid outages.
  • Smart Monitoring & Multi-Source Compatibility
    Supports WiFi monitoring, generator connection, grid feed-in, and multiple communication protocols including RS485, RS232, and USB.
SKU: LK-13-020 Category:

Description

Product Description

  • The Stackable All-in-One Energy Storage System integrates a high-performance hybrid solar inverter with advanced LiFePO4 lithium battery technology in a compact and modular design. Available in 10kW + 30kWh and 12kW + 60kWh configurations, this integrated ESS solution is designed to provide reliable power backup, solar energy storage, and intelligent energy management for residential and commercial applications.
  • Featuring a stackable structure, the system enables flexible capacity expansion while reducing installation space and complexity. The built-in hybrid inverter supports dual MPPT solar input, wide PV voltage range, grid connection, generator compatibility, and seamless UPS-level switching for uninterrupted power supply.
  • With high-efficiency battery management, intelligent WiFi monitoring, and multiple communication interfaces, the system delivers stable performance, enhanced safety, and long service life. The integrated design simplifies installation and maintenance, making it an ideal choice for modern solar energy storage projects.

Applications

Residential solar energy storage systems
Home backup power supply
Villas and off-grid houses
Small commercial and industrial energy storage
Solar + storage hybrid power systems
Areas with unstable grid power
Peak shaving and energy cost reduction
Backup power for offices, shops, and farms

Parameter

Model ESS 10KW+30KWH ESS 12KW+60KWH
AC Input
Rated Inputvoltage (VAC) 220/230/240;L+N+PE
Voltage Range (VAC 90~280+3 (normal mode); 170~280+3 (UPS mode)
频率Frequency (Hz) 50Hz/60Hz (Auto detection)
AC Output
Rated capacity (w) 10000W 12000W
Voltage (VAC) 220/230/240
Power Factor(PF) 1
Frequency 50/60Hz+0.1%
Switch Time (ms) 10(APP/UPS mode), 20(GEN mode)
Wave Form Pure Sine Wave
Overload protection (105% < load <110%) ±5%: report error and turn off the output after 5 minutes;
(11o% < load < 125%) ± 5%: report error and turn off the output after 10 seconds;
Load >125% 5%: report error and turn off the output after 5 seconds
Max. Efficiency (Battery Mode) 94%@48VDC
Charger  (PV /AC)
Solar charger Type Dual MPPTs
Max pv input current I power 1*MPPT:27A/9KW, 2*MPPTs: 22.5A/15kW
Operating voltage Range (V DC) 60Vdc ~ 450Vdc
Max pv open circuitvoltage (V DC) 500Vdc
Max pv charge current (A) 160A
Max Ac charge current (A) 160A
Max. charge current (pv+AC) (A) 160A
Battery
Nominal Battery voltage 51.2VDC
Rated Energy 15360Wh*2 15360Wh*4
Usable Energy(90%DOD) 27.6KWh 55.3KWh
Max. charge/Discharge current 200A/200A
Operation voltage Range 44.8Vdc ~ 58.4Vdc
Operation Temperature – 10℃ ~ +50℃
Interface
Reveal LCD
Communication RS485 / RS232 / USB / Dry Contact
Monitoring WiFi
General Dota
Ingress protection IP21
Operating Temperature -10  ℃ ~ 50 ℃
Relative Humidity 5%~ 95% (Non-condensing)
Storage Temperature -15  ℃~ 60  ℃
Max.operoting Altitude 4000m (Derating above 1000m)
DIMENSION
LXW XH (Products size, mm) Inverter:680x520x182mm/Battery:680x520x246mm(1PCS)
LXWH (Package size, mm) Inverter:736X576X336mm/Battery:760X600X444mm(IPCS)
Weight(NW Kg) Inverter:29Kg / Battery:119Kg(1PCS)
Weight(GW Kg) Inverter:33Kg / Battery:139Kg(1PCS)
