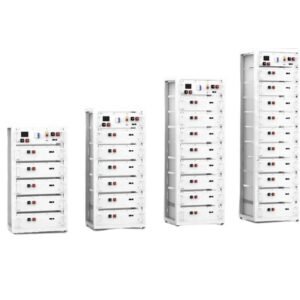

- High Voltage & Scalable Design (25kWh–51kWh)
Flexible capacity expansion and parallel connection to meet growing energy demands.
- Advanced LiFePO₄ Battery Technology
Superior safety, thermal stability, and long cycle life for reliable performance.
- Intelligent BMS & Real-Time Monitoring
Smart control system ensures optimized efficiency and system protection.
- Compact Rack-Mounted & Space-Saving
Highly integrated design for easy installation and minimal footprint.
- Multiple Safety Protections & Long Lifespan
Built-in protection against overcharge, over-discharge, short circuit, and overheating.
-

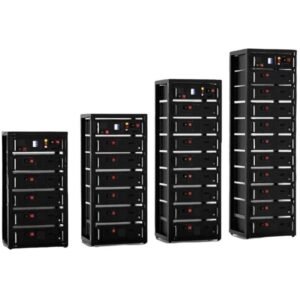

- High Voltage & Scalable Design (51kWh–102kWh)
Flexible capacity expansion and parallel connection to meet growing energy demands.
- Advanced LiFePO₄ Battery Technology
Superior safety, thermal stability, and long cycle life for reliable performance.
- Intelligent BMS & Real-Time Monitoring
Smart control system ensures optimized efficiency and system protection.
- Compact Rack-Mounted & Space-Saving
Highly integrated design for easy installation and minimal footprint.
- Multiple Safety Protections & Long Lifespan
Built-in protection against overcharge, over-discharge, short circuit, and overheating.
-

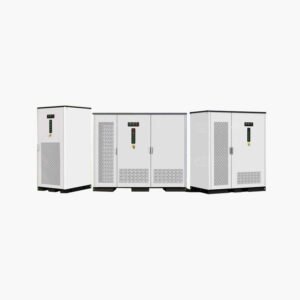

- Integrated All-in-One Cabinet – Combines LiFePO₄ battery (66kWh), BMS, PCS (30kW), EMS, and fire protection in a single, space-saving enclosure.
- High-Voltage & High Efficiency – Battery voltage range 320–820V, 97.8% max efficiency, and <10ms seamless off-grid switching.
- Dual MPPT Solar Input – 38.4kW total PV power (2 x 19.2kW), wide MPPT range 200–800V, max PV voltage 850V.
- Flexible AC Operation – 30kVA rated / 33kVA max output, on-grid and off-grid capable, 400V/230V three-phase, 100% unbalanced load support.
- Robust & Intelligent – IP20 protection (core IP5X), intelligent air cooling, altitude 4000m (derating above 2000m), low standby power (<20W).
-
- True All-in-One Integration – Combines 100kWh LiFePO₄ battery, BMS, 50kVA PCS, EMS, and fire suppression in a single space-saving cabinet.
- High-Power Solar Input – Dual MPPT with 76.8kW total PV capacity (38.4kW + 38.4kW); wide MPPT voltage range 200–800V; max PV voltage 850V.
- Powerful AC Performance – 50kVA rated / 55kVA max output, on‑grid and off‑grid capable, 400V/230V three-phase, 100% unbalanced load support, overload tolerance (1.5x for 100ms).
- Ultra-Fast & Efficient – <10ms UPS-grade off‑grid switching, 98.2% maximum efficiency, low standby power (<20W).
- Robust & Intelligent – 150A charge/discharge current, 90kWh usable energy (90% DoD), intelligent air cooling, 4000m altitude rating (derating above 2000m), IP20 (core IP5X).
-
- On-grid to Off-grid switch time<10ms
- On/off-grid switching time<10ms
- IP65 Waterproof
- Supports multiple units in parallel
-
- Highly integrated,space saving
- Mature technology,stable and reliable
- Flexible deployment,flexible increase and decrease
- Simple operation and maintenance
- Ultimate security
- Parallel connection of multiple machines
- Intelligent control
- Efficient economy
- Ultra long lifespan design
-
- Rack BMS system.
- With smart BMS system.
- Flexible expansion, easy installation.
- Class A cell, Superior safety and reliability.
- Big discharge current, Compatible with solar inverter and energy system.
- CAN/RS485 communication optional.
- Optional smart BMS can communicate with Different Brand of Hybrid Solar Inverter.
