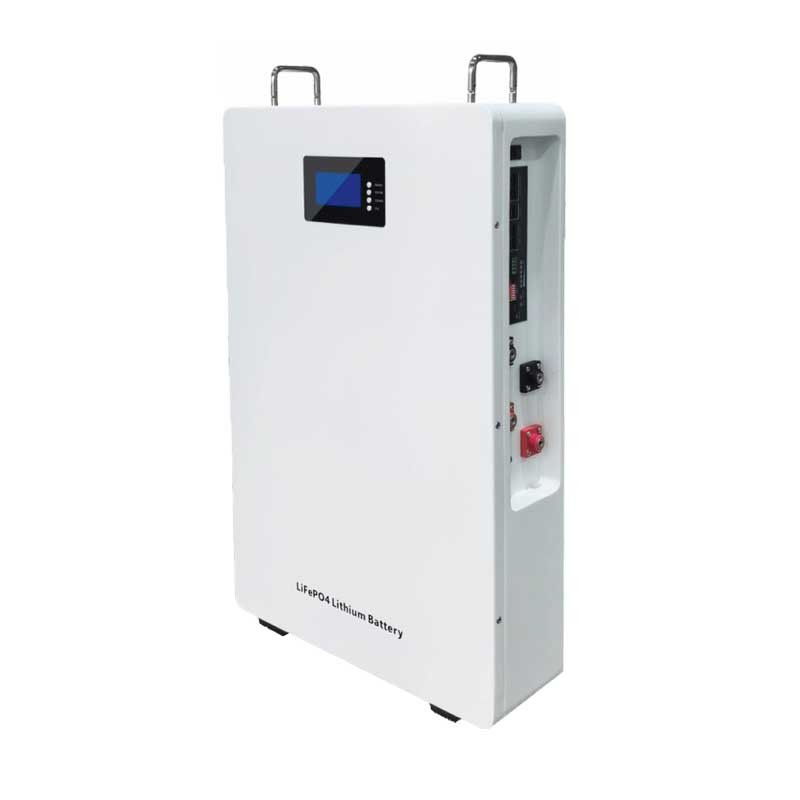

moPower 25.6V 51.2V 100Ah /200Ah Wall Mounted LiFePO4 Lithium Battery, Powerwall Solution for Home Energy Storage
moPower 25.6V 51.2V 100Ah /200Ah Wall Mounted LiFePO4 Lithium Battery, Powerwall Solution for Home Energy Storage - Image 2
moPower 25.6V 51.2V 100Ah /200Ah Wall Mounted LiFePO4 Lithium Battery, Powerwall Solution for Home Energy Storage - Image 3

moPower 25.6V 51.2V 100Ah /200Ah Wall Mounted LiFePO4 Lithium Battery, Powerwall Solution for Home Energy Storage

  • More than 5000 times charge/discharge cycles life.
  • With the overcharge and overdischarge protection function.
  • With the overcurrent and short circuit protection function.
  • With the overtemperature protection function.
  • Application for off-grid solar power system.
  • Inteligent BMS equipped inside to maintain the battery always work at best condition.
  • Automatically output cut off after 30days no charge and discharge to ensure also can cut ofoutput by manual operation
  • Support energy storage inverter manufacturer BMS communication protocol Deye, GrowattVoltronic, GOODWE,PYLO, VICTRON, SMA, SOFAR.
  • 5 years warranty.10 years life time . LiFePO4 battery, more stable and safe
SKU: LK-17-003 Category:

Description

Product Description

  • This Wall Mounted LiFePO4 Lithium Battery is low-voltage energy storage product which adopts high safety LFP technology.
  • Adopted automotive-grade end plate technology for longer cycle life; supports up to 15 units in parallel.It also supports remote update & easy monitoring. Meet this efficient product with perfect performance.

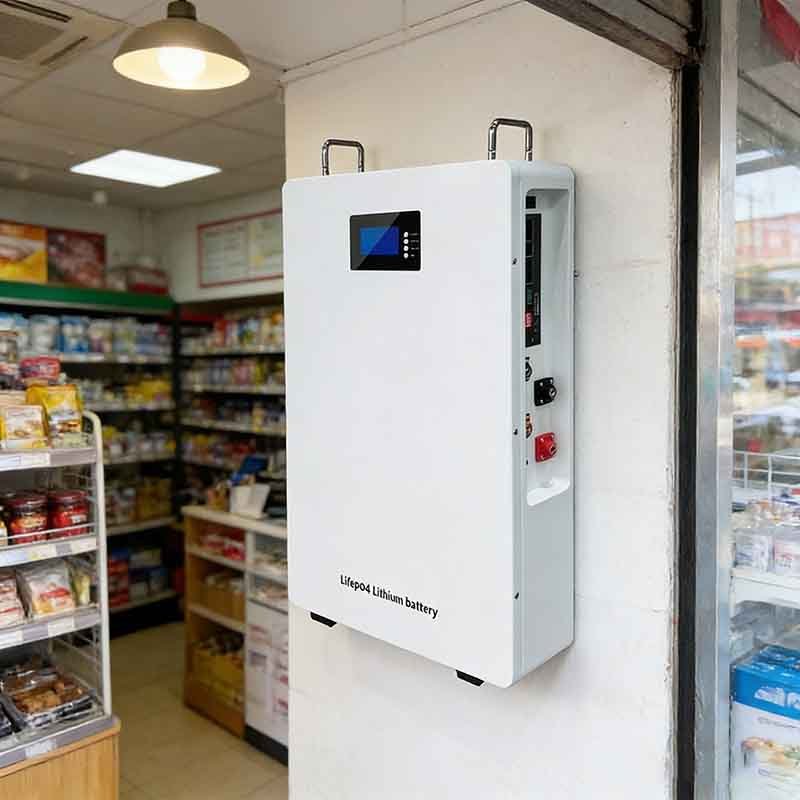

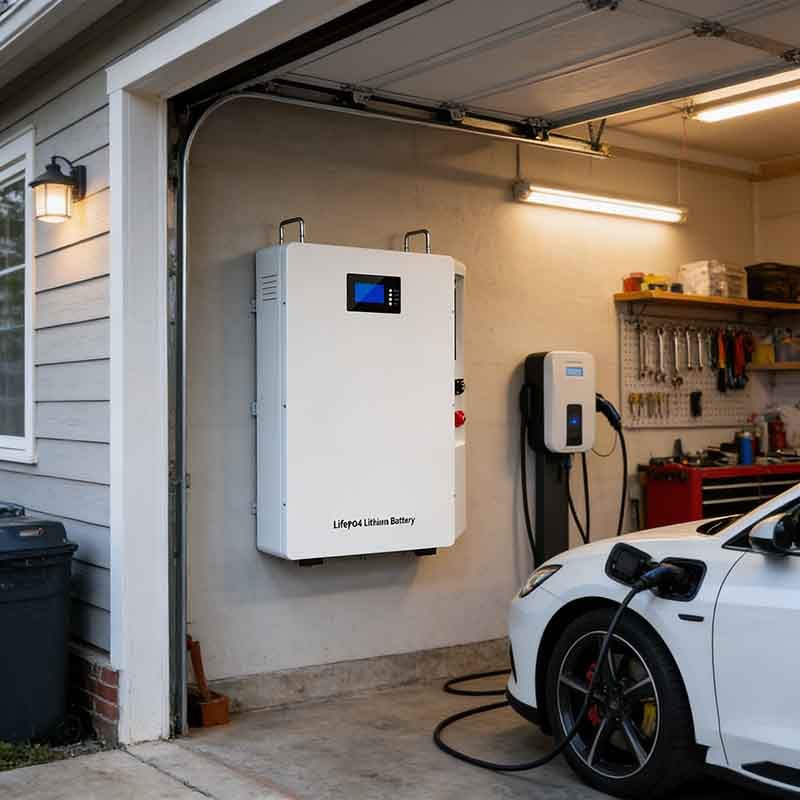

Application

  • Solar Storage
  • Household
  • electricity
  • Nomadic farm
  • Central office



Parameter

Model 25.6V   100Ah 25.6V  200Ah 51.2V  100AH 51.2V  200AH
Case design Wall mounted Wall mounted Wall mounted Wall mounted
Battery Type LiFePO4 LiFePO4 LiFePO4 LiFePO4
Normal Battery Voltage(Vdc) 25.6V 25.6V 51.2V 51.2V
Normal Capacity(25℃0.2C)(Ah) 100Ah 200Ah 100Ah 200Ah
Normal Capacity (25℃0.2C)(Ah) 2560WH 5120WH 5120WH 10240WH
Folat Charge Voltage(Vdc) 28.0V 28.0V 56.0V 56.0V
Operation Voltge range (Vdc) 20.0～29.2V 20.0～29.2V 40.0～58.4V 40.0～58.4V
Max.Continuous Charge Current(A) 50A 100A 50A 100A
Max.Continuous Discharge Current(A) 100A 200A 100A 200A
Max.Pulse Discharge Current(A) 150A 1Sec 300A 1Sec 150A 1Sec 300A 1Sec
Terminal M6 M8 M6 M8
Storage temperature 0℃～30℃
IP degree IP 20
Storage duration 6months at 25℃
Safety standard UN38.3,MSDS
Display(Optional) LCD
Communication Port (Optional) CAN,RS485
PROTECTION
Protection Overcharge protection,Overdischarge protection,Overcurrent protection,Shortcircuit protection,Overtemperature protection,
AMBIENT
Working Temperature -10℃～+50℃
Humidity 0～95%(no condensation)
Sea Level(m) ≤1500
DIMENSION
L*W*H(products size,mm) 460*410*139 mm 660*410*139 mm 660*410*139 mm 880*660*160mm
L*W*H(package size,mm) 540*490*219 mm 740*490*219 mm 740*490*219 mm 960*740*240mm
NW Kg 25.0Kg 44.2Kg 44.2Kg 88Kg
GW Kg 29.0Kg 46.9Kg 46.9Kg 103Kg
