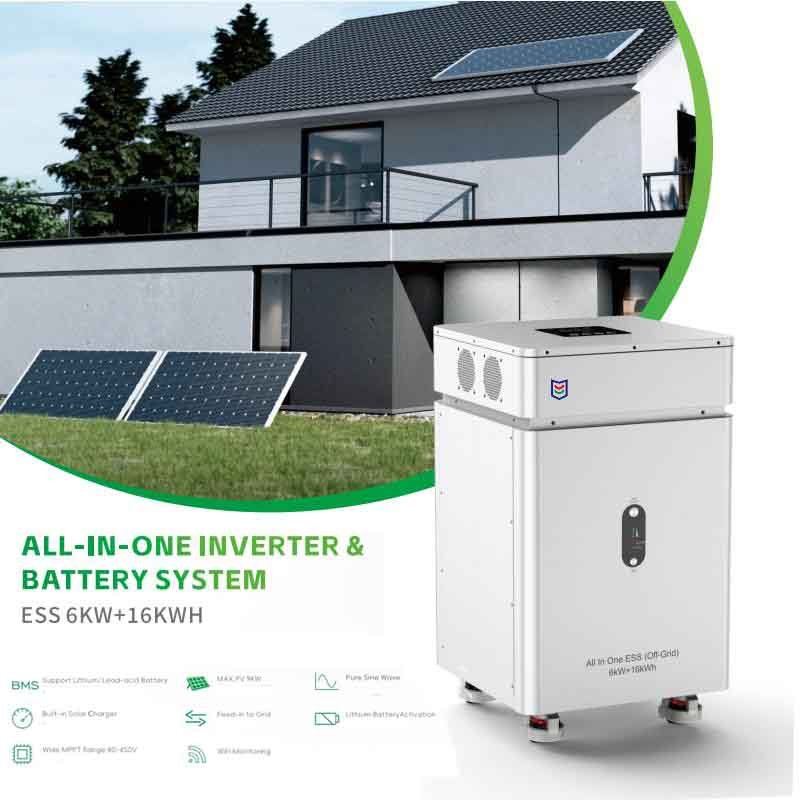

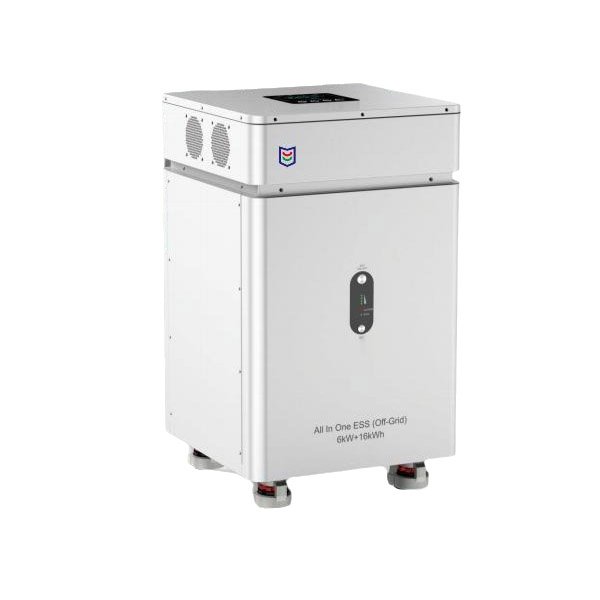

moPower 6KW +16KWH All-in-One Solar Energy Storage System | Hybrid Inverter ESS with 51.2V Lithium Battery
moPower 6KW +16KWH All-in-One Solar Energy Storage System | Hybrid Inverter ESS with 51.2V Lithium Battery - Image 2

moPower 6KW +16KWH All-in-One Solar Energy Storage System | Hybrid Inverter ESS with 51.2V Lithium Battery

  • All-in-One Design
    Integrated inverter, battery, and MPPT controller for easy installation
  • 16KWh Lithium Battery
    14.4KWh usable energy with long lifecycle and high safety
  • High PV Capacity
    Supports up to 9000W solar input with MPPT optimization
  • Seamless Backup
    ≤10ms switch time ensures uninterrupted power supply
  • Smart Monitoring
    LCD display + USB/WiFi for real-time system tracking
Category:

Description

Product Description

  1. The 6KW 16KWh All-in-One Energy Storage System (ESS) is a highly integrated hybrid solar solution that combines a 6KW pure sine wave inverter, MPPT solar controller, and 51.2V 16KWh lithium battery into a single compact unit.
  2. Designed for efficiency, reliability, and ease of installation, this system supports solar, grid, and battery power input, ensuring uninterrupted energy supply for residential and small commercial applications.
  3. With a wide PV input range (80–450V) and a maximum PV input power of 9000W, the system maximizes solar energy utilization. The advanced MPPT technology delivers up to 93% efficiency, while fast switching time (≤10ms) ensures seamless backup during power outages.
  4. The built-in lithium battery offers 14.4KWh usable energy (90% DOD), providing long-lasting and stable power storage with high charge/discharge performance (150A).
  5. Its LCD display and communication interfaces (USB/WiFi optional) enable real-time monitoring and smart energy management.

Applications

This all-in-one ESS is ideal for:

  • Residential solar energy storage systems
  • Off-grid and hybrid solar installations
  • Backup power for homes and apartments
  • Small commercial energy storage solutions
  • Areas with unstable or limited grid access (Africa, Southeast Asia, etc.)
  • Energy cost reduction and peak shaving

Parameter

Model ESS6KW+16KWH
Rated Input voltage (VAC) 208 / 220 / 230 / 240; L+ N + PE
voltage Range (VAC 90~2803 (normal mode); 170~280±3 (ups mode)
Frequency (HZ) 50 / 60 ( Auto Adaptive)
Ac output
Rated capacity (kw) 6
Voltage (VAC) 208 / 220 / 230 / 240
Power Factor (PF) 1
Frequency 50/60HZ+0.1%
Switch Time (ms) 10
Wave Form pure sine wave
Overload capacity (Battery Mode) 60s@102%~110% ; 10s@110%130%;3s@130%…150% ; 0.2s@>150%;
Max. Efficiency (Battery Mode) 93%@48VDC
Charger (pv /AC)
Solar chargerType MPPT
Max pv inputcurrent I power 27A/9000W
Operating voltage Range (V DC) 80 – 450
Max pv open circuitvoltage (V DC) 500
Max pv charge current (A) 120
Max Ac charge current (A) 120
Max.charge current (pv+AC) (A) 120
Battery
Nominal  Battery voltage 51 . 2VDC
Rated Energy 16kwh(0 . 5C , 25
Usable Energy(90%DOD) 14 . 4kwh
Max. charge/Discharge current 150A/150A
Operation voltage Range 40 . ovdc ~ 58 . 4vdc
Operation Temperature – 10C ~ +50C
Interface
Reveal LCD
Communication USB
Monitoring WiFi
General Data
Ingress protection IP20
Operating Temperoture -10  ℃ ~ 50 ℃
Relative Humidity 5% ~95% (Non-condensing)
Storo age Temperoture -15  ℃ ~ 60 ℃
Max.operating Altitude 4000m (De rating above 1ooom)
DIMENSION
XWXH (products size, mm) 430*481*736mm
LXWH (package size, mm) 540*510*895mm
Weight(NW Kg) 136kg
weight(GW Kg) 159kg
