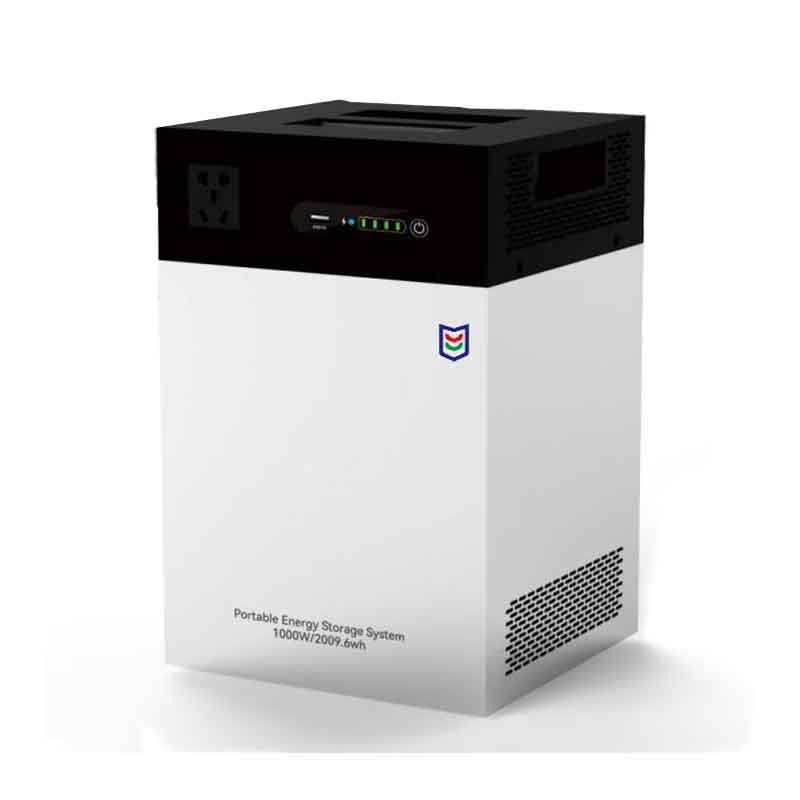

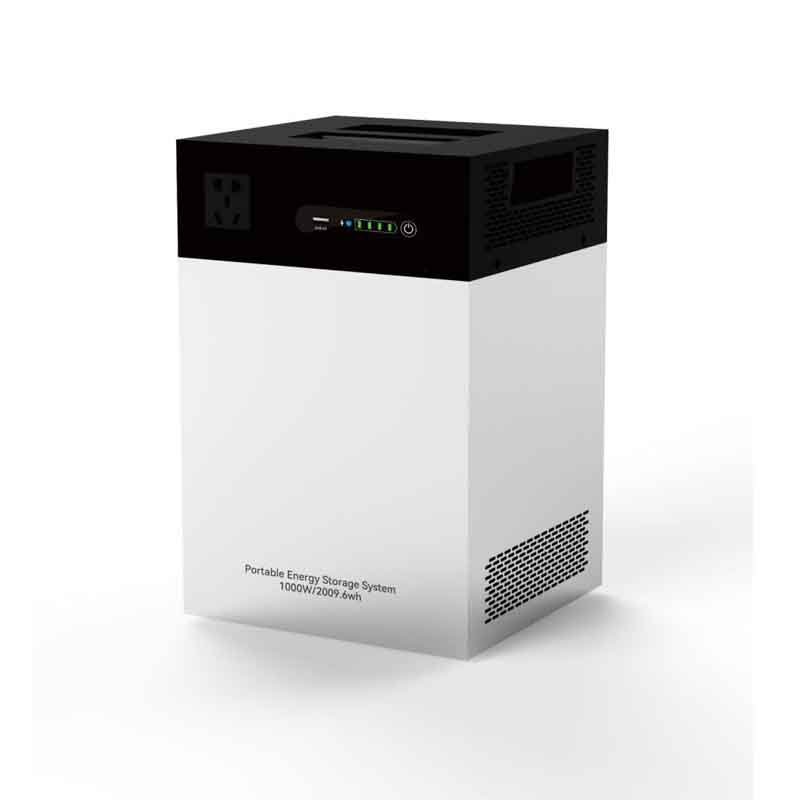

moPower Protable All-in-one Series 2009WH LiFePO4 Battery for Home Energy Storage
moPower Protable All-in-one Series 2009WH LiFePO4 Battery for Home Energy Storage - Image 2

moPower Protable All-in-one Series 2009WH LiFePO4 Battery for Home Energy Storage

  • Integrated design of inverter and BMS
  • Cycles can reach 8000 times
  • Support solar charging
  • All around protection
  • Wide MPPT Range 10- 55V
  • Supports USB output & phone chargin
SKU: LK-13-013 Category:

Description

Product Description

  • moPower Protable All-in-one Series 2009WH LiFePO4 Battery is a high-performance energy storage battery system designed for modern families. It uses advanced LiFePO4 (lithium iron phosphate) battery technology and meets the family’s all-weather electricity needs with a large capacity of 2009Wh .
  • The product is safe, intelligent, and efficient. Through modular design and intelligent BMS (battery management system), it can be easily installed as “plug and play”.
  • It is compatible with mainstream hybrid inverters and seamlessly integrated into the home environment, providing users with a reliable and long-lasting green energy storage solution.

Application

  • Solar Storage
  • Household
  • Electricity
  • Nomadic farm
  • Central office

Parameter

Model 1000W+2009WH
inverter/Charger
Rated AC Output Power 1000W
Output Voltage Waveform Pure Sine Wave
Output Voltage 185～230VAC 50Hz
Low DC Warning Point ≤19%
Low DC Cut-of Voltage 5.8Vdc
Low DC Warning Return Voltage >20%
Charging Power(Utility and solar together) 800W Max
Bulk Charging Voltage 7.2Vdc
Float Charging Voltage 7.0Vdc
AC Input
Nominal Input Voltage 230Vac
Low Loss Voltage 90Vac±7
Low Loss Returm Voltage 100Vac±7
High Loss Voltage 280Vac±7
High Loss Returm Voltage 270Vac±7
Max.AC Input Voltage 300Vac
Nominal Input Frequency 45～65Hz
AC Charging Power 800W Max.
Solar Input
Nominal PV Voltage 38Vdc
PV Array MPPT Voltage Range 13Vdc～55Vdc
Max.PV Array Open Circuit Voltage 56Vdc
Solar Charging Power 550W Max.
Lithium Iron Battery
Capacity 2009.6Wh
Nominal Battery Voltage 6.4Vdc
Typical Capacity 314Ah
Max.Charge Current 220Ah
Max.Discharge Current 220Ah
Operation Voltage Range 5.8Vdc～7.2Vdc
Operation Temperature -10°C～+50°C
DC Output
DC Output Power 5W Max.
DC Output Socket lpcs 5VIA USB charger
Display Function
TLED Indicator 4pcs SOC indicators,l pcs working status indicators
Ambient
Noise(dB) <40dB(lmeter)
Working Temperature -10°C～+50°C
Humidity 5～95%(no condensation)
Sea Level(m) ≤2000
Dimension
L*W*H(products size) 240*225*360mm
L*W*H(package size) 286*271*416mm
NW Kg 20.9Kg
GW Kg 22.7Kg
