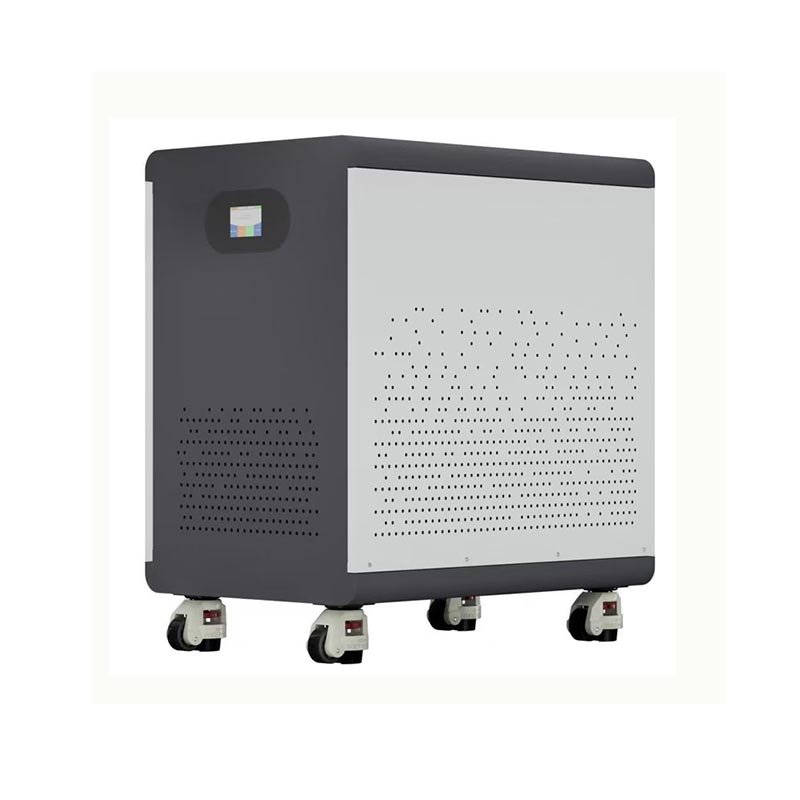

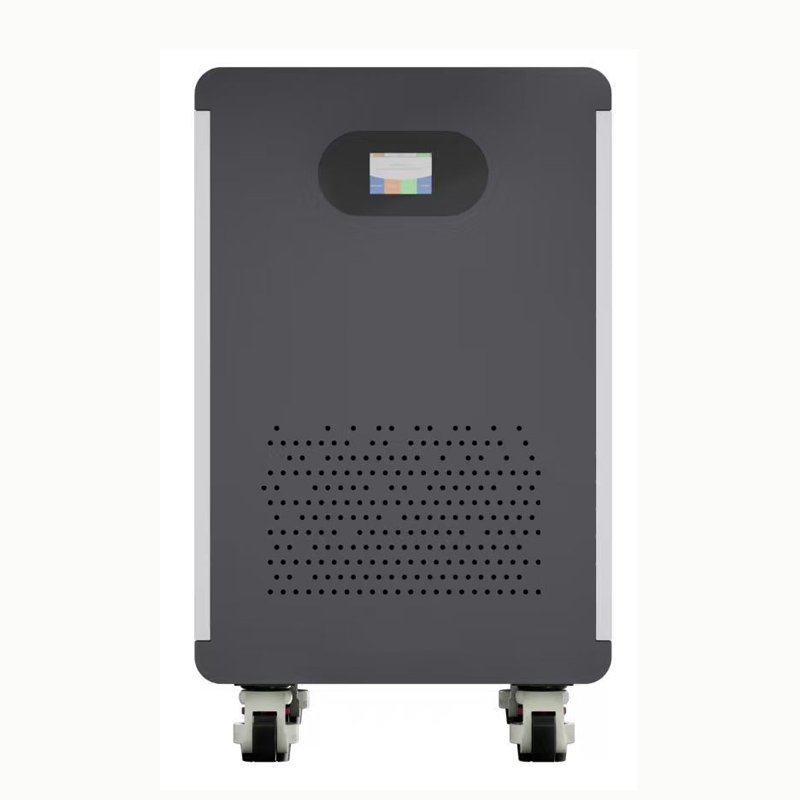

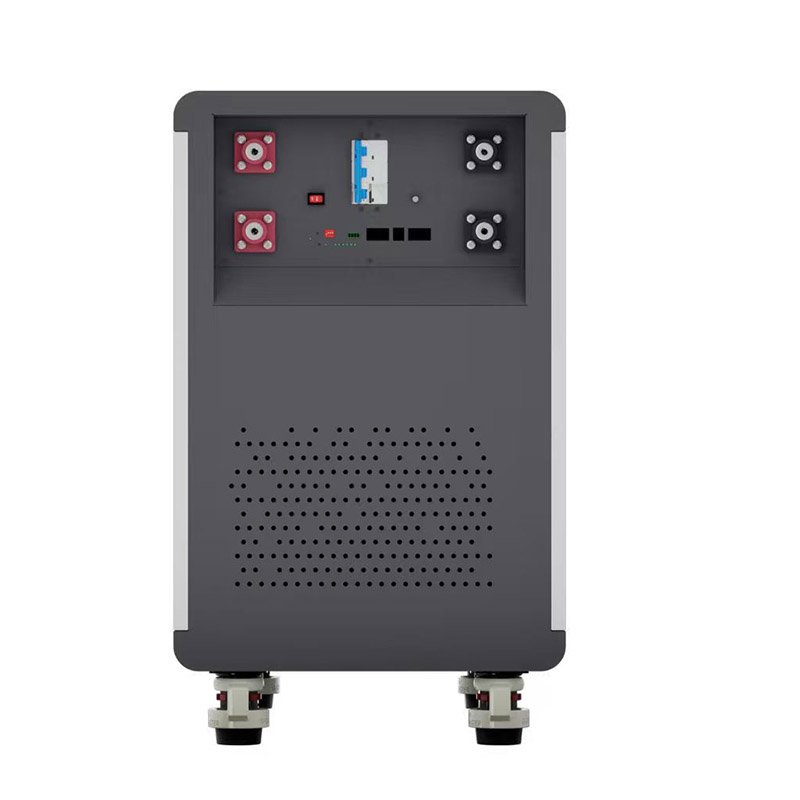

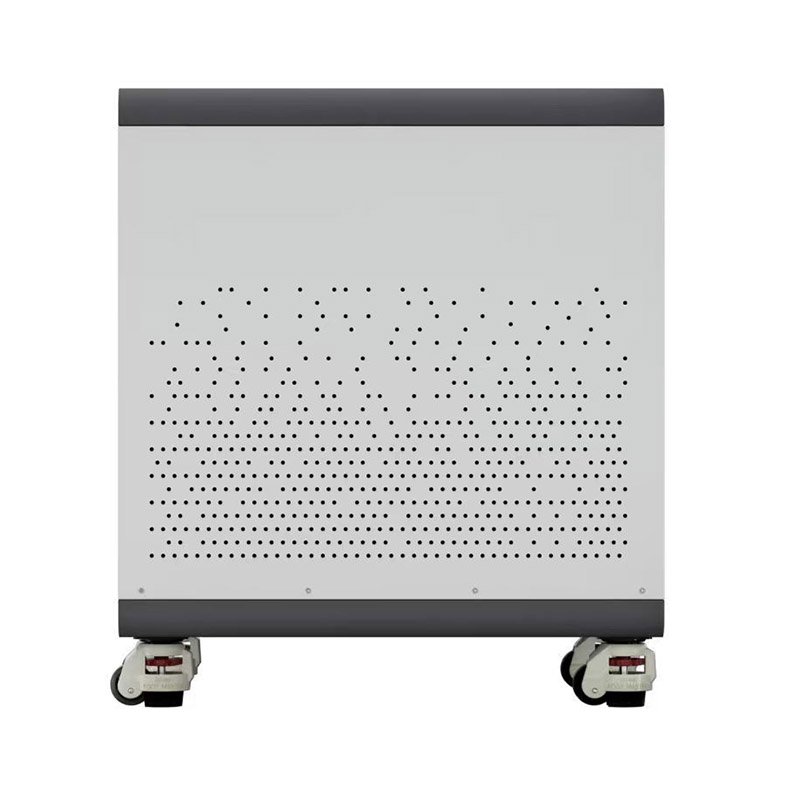

moPower All-in-one Inverter&Battery System 5KWh 8kWh LiFePO4 Battery With Movable Rotating Wheels
moPower All-in-one Inverter&Battery System 5KWh 8kWh LiFePO4 Battery With Movable Rotating Wheels - Image 2

moPower All-in-one Inverter&Battery System 5KWh 8kWh LiFePO4 Battery With Movable Rotating Wheels

  • BATTERY:Support Lithium/ Lead-acid Battery
  • MONITORING:WiFi Monitoring
  • SOLAR CHARGER:Built-in Solar Charger
  • WAVE FORM:Pure Sine Wave
  • SOLAR CHARGING:Support solar charging
  • LITHIUM BATTERY:Lithium Battery Activation
  • GRID CONNECTION:Feed-in to Grid
SKU: LK-17-009 Category:

Description

Product Introduction

  • Household energy storage products are designed for residential and small and medium-sized energy storage applications. This system integrates three core components: high-quality A-grade LiFePO4 cells, an intelligent battery management system, and a robust and aesthetically pleasing protective casing.
  • It features small size, high energy and high safety. This product features a 3.5-inch touchscreen interface and offers dual connection options: Bluetooth pairing enables real-time parameter monitoring and configuration through a dedicated mobile application, while router connection allows for remote system management via network access. Users can increase energy by adding multiple batteries in parallel to meet the growing power demand.

Application

  • Solar Storage
  • Household
  • Electricity
  • Nomadic farm
  • Central office



Parameter

Model 3.6KW+5KWH 3.6KW+8KWH
AC Input
Rated Input Voltage(VAC) 208/220/230/240;L+N+PE
Voltage Range(VAC) 90～280±3(normal mode);170～280±3(UPS mode)VAC
Frequency(Hz) 50/60Hz(Auto Adaptive)
AC Output
Rated Capacity(KW) 3.6KW
Surge Power(KVA) 5.4KVA
Voltage(VAC) 208/220/230/240VAC
Power Factor(PF) 1PF
Frequency(Hz) 50/60Hz±0.1%
Switch Time(ms) 10 ms
Wave Form Pure Sine Wave
Overload Capacity(Battery Mode) 60s@102%～110%;10s@110%～130%;3s@130%～150%;0.2s@>150%;
Max.Efficiency(Battery Mode) 92.7%@24VDC
Charger(PV/AC)
Solar Charger Type MPPT
Max PVinput current/power 18A/5000W
Operating Voltage Range(VDC) 40～450VDC
MaxPVOpen Circuit Voltage(VDC) 500 VDC
Max PV Charge Current(A) 100 A
MaxAC Charge Current(A) 100 A
Max.Charge Current(PV+AC)(A) 100A
Battery
Nominal Battery Voltage 25.6VDC
Rated Energy 5KWh(0.2C,25℃) 8KWh(0.2C,25℃)
Usable Energy(90%DOD) 4.5KWh 7.2KWh
Max.Charge/Discharge Current 100A/150A
Operation Voltage Range 20Vdc～29.2VDC
Operation Temperature -10℃～+50℃
Interface
Reveal LCD
Communication USB
Monitoring WiFi
General Data
Ingress Protection IP20
Operating Temperature -10℃～50℃
Relative Humidity 5%～95%(Non-condensing)
Storage Temperature -15℃～60℃
Max.Operating Altitude 4000m(Derating above 1000m)
DIMENSION
L*W*H(product size,mm) 440*246*760mm
L*W*H(package size,mm) 520*436*890 mm
NW Kg 58kg 73kg
GW Kg 73kg 86kg
