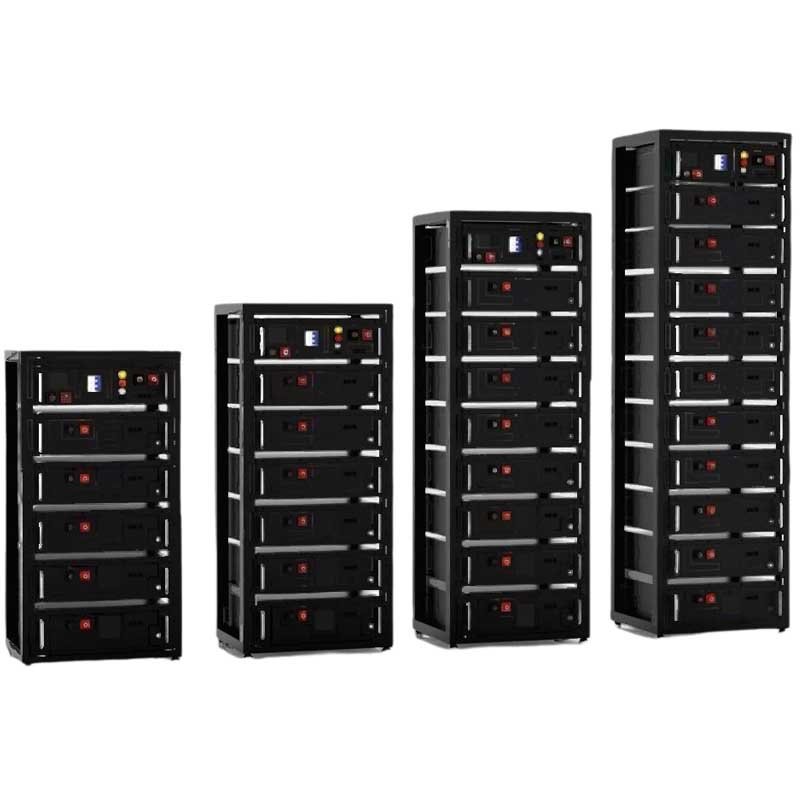

moPower 51kWh–102kWh Commercial & Industrial Energy Storage System | High Voltage LiFePO₄ Battery

moPower 51kWh–102kWh Commercial & Industrial Energy Storage System | High Voltage LiFePO₄ Battery

  • High Voltage & Scalable Design (51kWh–102kWh)
    Flexible capacity expansion and parallel connection to meet growing energy demands.
  • Advanced LiFePO₄ Battery Technology
    Superior safety, thermal stability, and long cycle life for reliable performance.
  • Intelligent BMS & Real-Time Monitoring
    Smart control system ensures optimized efficiency and system protection.
  • Compact Rack-Mounted & Space-Saving
    Highly integrated design for easy installation and minimal footprint.
  • Multiple Safety Protections & Long Lifespan
    Built-in protection against overcharge, over-discharge, short circuit, and overheating.
SKU: LK-15-006 Category:

Description

Product Description

  1. The HV PRO Series Commercial & Industrial Energy Storage System is a high-voltage, rack-mounted lithium battery solution designed to meet the evolving energy demands of modern businesses.
  2. With a flexible capacity range from 51kWh to 102kWh, this system integrates advanced LiFePO₄ (Lithium Iron Phosphate) battery technology, delivering exceptional safety, long lifespan, and stable performance.
  3. Engineered with a highly integrated structure, the system minimizes installation space while maximizing efficiency. It supports modular expansion and parallel operation, allowing businesses to scale energy storage capacity as needed.
  4. The built-in intelligent Battery Management System (BMS) enables real-time monitoring, precise control, and comprehensive protection, ensuring optimal system performance and operational safety.

Designed for durability and efficiency, the HV PRO Series offers:

  • Stable high-voltage output (256V–512V)
  • Natural cooling system for energy efficiency
  • Low maintenance requirements
  • Long service life and reduced total cost of ownership

This makes it an ideal solution for businesses seeking reliable, cost-effective, and future-proof energy storage.

Applications

The HV PRO Series is widely used in various commercial and industrial scenarios:

  • Commercial Buildings

Optimize energy consumption, reduce electricity bills, and ensure backup power during outages.

  • Industrial Facilities

Support heavy-load operations, stabilize power supply, and improve energy efficiency.

  • Solar + Storage Systems

Store excess solar energy for later use, increasing self-consumption and energy independence.

  • Backup Power Supply

Provide reliable emergency power for critical systems and operations.

  • Peak Shaving & Load Shifting

Reduce peak demand charges by storing energy during off-peak hours and using it during peak periods.

  • Microgrid & Off-Grid Solutions

Enable independent and stable power supply in remote or unstable grid environments.

Parameter

Model HV PRO 256V 200AH HV PRO 307.2V 200AH HV PRO 409.6V200AH HV PRO 512V 200AH
Case Design Rack-mounted Rack-mounted Rack-mounted Rack-mounted
Nominal Voltage LiFePO₄ LiFePO₄ LiFePO₄ LiFePO₄
Module Configuration IP16S IP16S IP16S IP16S
Number Of Modules 5 6 8 10
Battery Type 256Vdc 307.2vVdc 409.6Vdc 512Vdc
Single Cell apacity 200Ah 200Ah 200Ah 200Ah
Battery Level 51kWh 61kWh 81kWh 102KWh
Voltage Range 232~288Vdc 278.4~345.6Vdc 371.2~460.8Vdc 464~576Vdc
Max.Charge Curent 100A 100A 100A 100A
Max.Discharge Current 100A 100A 100A 100A
Protection Overcharge protection,Overdischarge protection,Overcurent protection,
Shortcircuit protection,Overtemperature protection,
Cooling Method Natural cooling
Communication CAN/RS485
Storage Temperature
Ambient Conditions 0℃~30℃
Storage Duration 6months at25℃
Safety Standard UN38.3,MSDS
IP Rating IP20
Working Temperature -10°℃~+50℃
Humidity 0~95%(no condensation)
Max.Operating Altitude <4000m(used for downgrading over 2000m)
Module size(Excluding rack):
Product(LxW×H) 660x440x230 mm
Package  (LxW×H) 740x500x400mm
N.W. 90Kg
G.W. 105Kg
