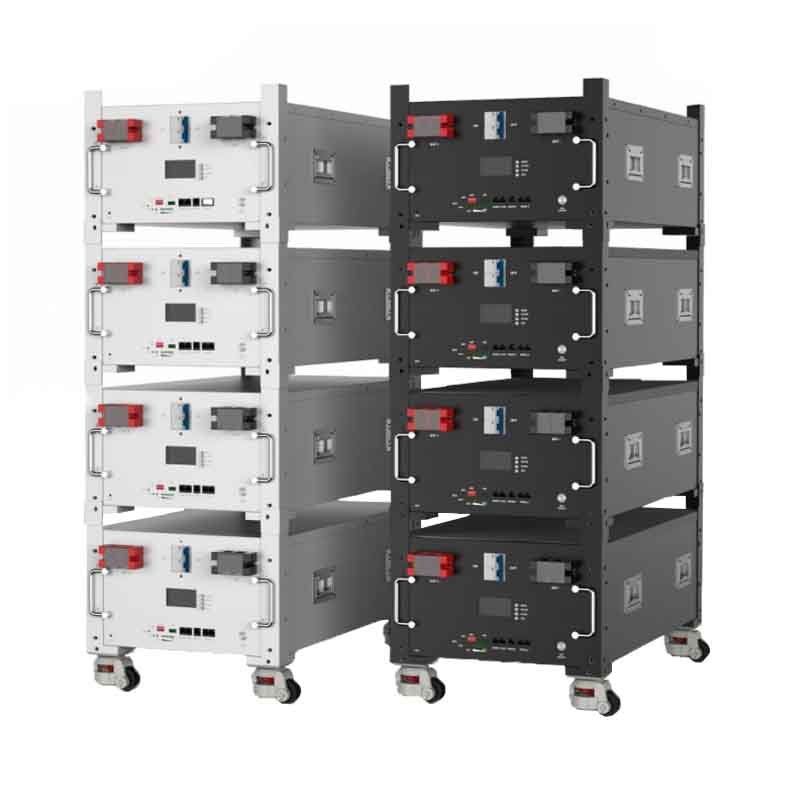

moPower All-in-one C&I BESS 51.2V 100Ah 200Ah 280Ah 314Ah Plus Rack LiFePO4 Battery

moPower All-in-one C&I BESS 51.2V 100Ah 200Ah 280Ah 314Ah Plus Rack LiFePO4 Battery

  • Rack BMS system.
  • With smart BMS system.
  • Flexible expansion, easy installation.
  • Class A cell, Superior safety and reliability.
  • Big discharge current, Compatible with solar inverter and energy system.
  • CAN/RS485 communication optional.
  • Optional smart BMS can communicate with Different Brand of Hybrid Solar Inverter.
SKU: LK-15-002 Category:

Description

Product Description

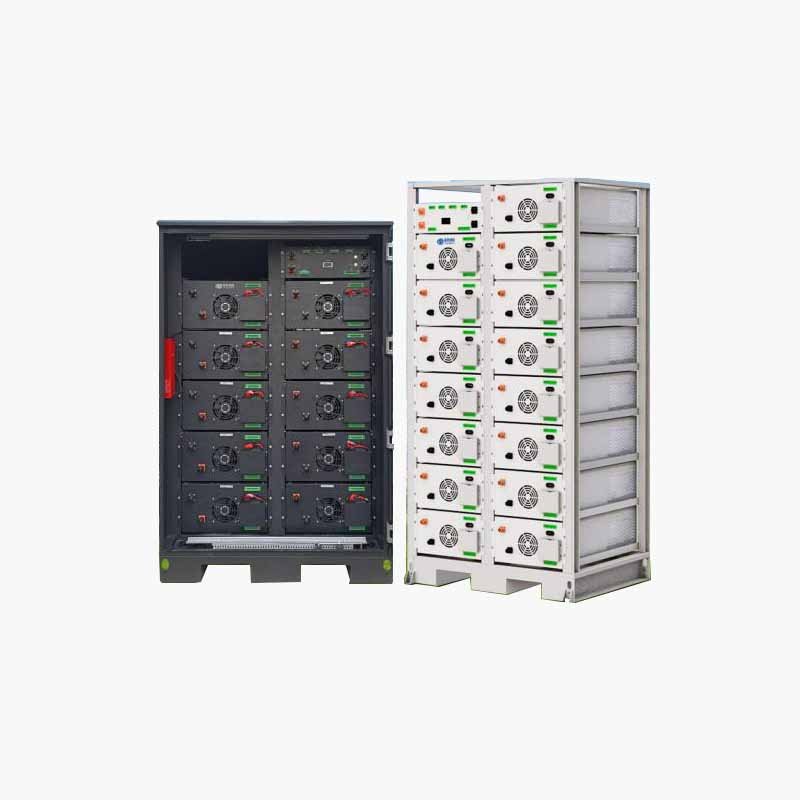

  • All-In-One Commercial & Industrial BESS,High-Capacity Battery Energy Storage System For C&I Applications
  • Integrated BESS Battery Factory for Scalable Commercial & Industrial Energy Storage
  • The BESS battery energy storage system is designed for commercial and industrial users requiring higher energy capacity, longer discharge duration, and enhanced peak-shaving performance.
  • Built on a mature industrial-grade inverter platform and integrated with moPower’s self-developed high-voltage LiFePO₄ battery system, this all-in-one BESS delivers stable, safe, and scalable energy storage for grid-connected, off-grid, and hybrid energy projects.



Application

  • This solution is well suited for battery energy storage systems (BESS) deployed in factories, industrial parks, data centers, and renewable energy EPC projects.

Parameter

Model 51.2V  100AH 51.2V  200AH 51.2V  280AH 51.2V  314AH
Case design Rack Rack Rack Rack
Battery Type LiFePO4 LiFePO4 LiFePO4 LiFePO4
Normal Battery Voltage(Vdc) 51.2V 51.2V 51.2V 51.2V
Normal Capacity(25℃0.2C)(Ah) 100Ah 100Ah*2pcs 280AH*4pcs 314AH*4pcs
Normal Capacity(25℃0.2C)(Ah) 5120WH 10240WH 57344WH 64307WH
Folat Charge Voltage(Vdc) 56.0V 56.0V 56.0V 56.0V
Operation Voltge range(Vdc) 40.0～58.4V 40.0～58.4V 40.0～58.4V 40.0～58.4V
Max.Continuous Charge Current(A) 50A 100A 200A 400A
Max.Continuous Discharge Curent(A) 100A 200A 400A 800A
Max.Pulse Discharge Current(A) 150A 1Sec 300A 1Sec 600A 1Sec 1200A 1Sec
Terminal M6 M6 M6 M6
Storage temperature 0℃～30℃
IP degree IP 20
Storage duration 6months at 25℃
Safety standard UN38.3,MSDS
Display LCD
Communication Port(Optional) CAN,RS485
PROTECTION
Protection Overcharge protection,Overdischarge protection,Overcurrent protection,Shortcircuit protection,Overtemperature protection,
AMBIENT
Working Temperature -10℃～+50℃
Humidity 0～95%(no condensation)
Sea Level(m) ≤1500
DIMENSION
L*W*H(products size,mm) 565*440*132 mm 565*440*132*2PCS 745*440*240*4PCS 745*440*240*4PCS
L*W*H(package size,mm) 645*520*192 mm 645*520*192*2PCS 840*520*430mm*4PCS 840*520*430mm*4PCS
NW Kg 45.0Kg 45.0Kg*2PCS 118Kg*4PCS 118Kg*4PCS
GW Kg 48.0Kg 48.0Kg*2PCS 138Kg*4PCS 138Kg*4PCS
