moPower Bluetooth Versions LED Smart Lithium Battery Power Display for Solar Energy Storage System
Key Features
- Real-time Monitoring: Simultaneously displays voltage, current, temperature, and battery capacity, with a rapid data refresh rate.
- Intelligent Communication: Supports the UART protocol, enabling the reading of data from the BMS.
- Circular Capacity Display: Provides a dynamic, graphical representation of remaining battery capacity, offering a more intuitive visual experience compared to numerical readouts.
- Wide Voltage Input: Requires no external step-down module; can be powered directly by the battery pack.
- Reverse Polarity Protection: The power input features reverse polarity protection to prevent equipment damage caused by incorrect wiring.
Description
Product Description

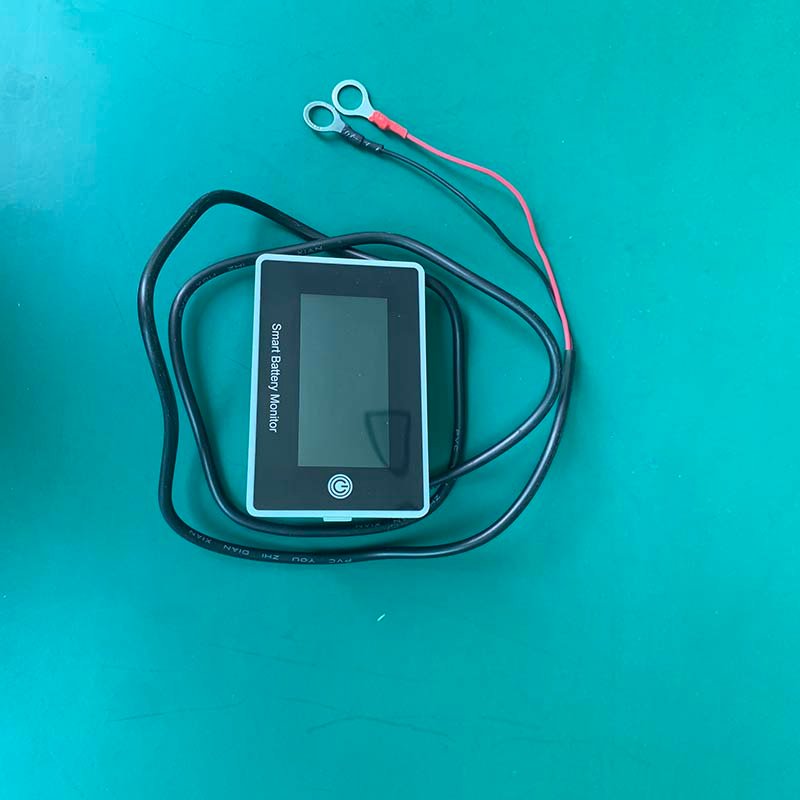

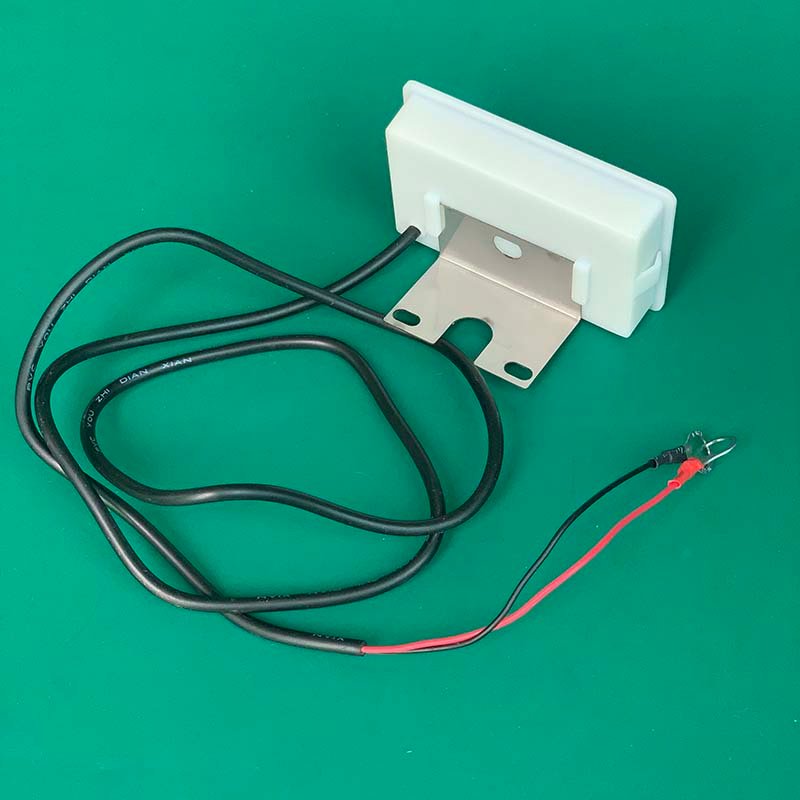

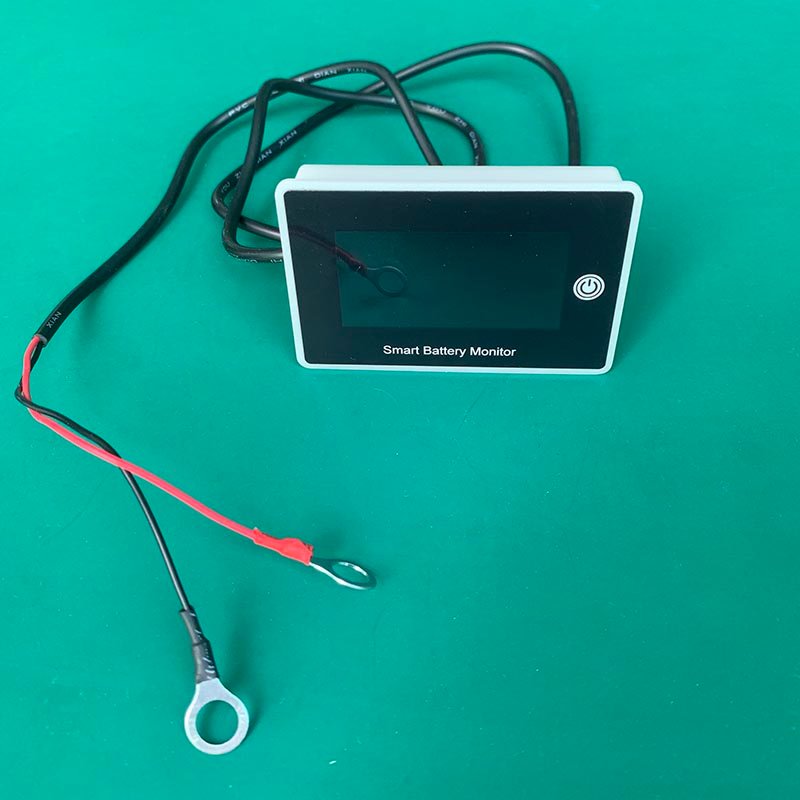

This product is an intelligent monitoring display screen specifically designed for lithium battery packs.

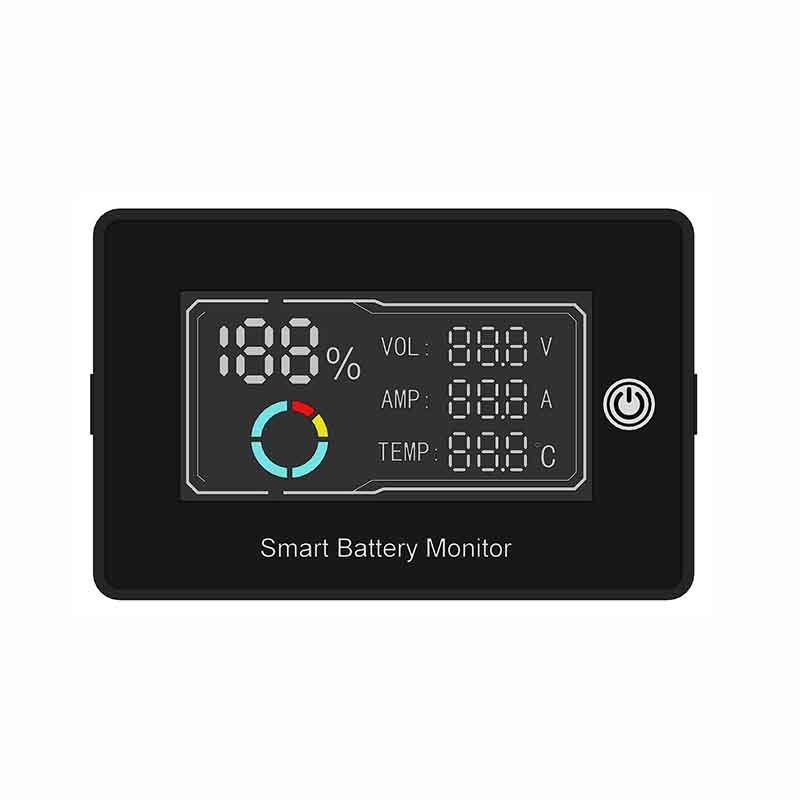

Featuring a high-brightness LED digital tube display and a circular battery capacity icon, it provides real-time monitoring and display of the battery pack’s total voltage, current, temperature, and remaining capacity. Equipped with Bluetooth communication capabilities, it facilitates convenient data exchange with the Battery Management System (BMS).
Operating Environment
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -30°C to +80°C
- Operating Humidity: 10% to 90% RH (Non-condensing)
Application
Electric Two-wheelers / Three-wheelers (Lithium Battery Versions)
Portable Energy Storage Power Supplies
Electric Forklift / Cleaning Equipment Battery Packs
Solar Energy Storage Systems
Parameter
| Item | Parameter | Remarks |
| Operating Voltage | DC 12V ~ 120V | Wide voltage input, suitable for various lithium battery packs |
| Power Consumption | < 1W | Extremely low static power consumption |
| Measurement Accuracy | Voltage: ±1%; Current: ±1% | – |
| Voltage Measurement Range | 0 ~ 120V | Can display 888V (maximum support for three-digit display) |
| Current Measurement Range | 0 ~ 300A | Can display 888A |
| Temperature Measurement Range | -20°C ~ 110°C | Can display 888°C |
| Power Level Indication | 0% ~ 100% | Circular LED ring indicator with high step accuracy |
